Martin Logan Motion SLM X3

Frequency Response

120–25,000 Hz ±3dB

Recommended Amplifier Power

20—140 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

80°

Sensitivity

93 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

3,000 Hz

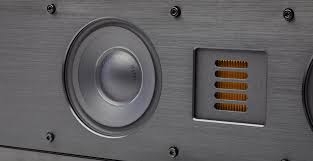

High Frequency Transducer

Three 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer

Six 4” (10.2cm) paper cone.

Components

Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

Inputs

Low-profile push style

Weight

13 lbs. (5.9 kg)

Dimensions

6.3" x 48" x 2 "
(16.2cm x 122cm x 5.1cm)
