Frequency Response
|
27–200 Hz ±3 dB. Anechoic in LFE mode.
|
Impedance
|
RCA: 8,300 Ohms Speaker Level: 2,000 Ohms (red to black)
|
Low Frequency Transducer
|
10” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly. Ported.
|
Amplifier
|
120 Watts (240 peak)
|
Software
|
Sub Control App: iOS and Android Anthem Room Correction: iOS, Android, and PC
|
Room Correction
|
Anthem Room Correction (ARC)
|

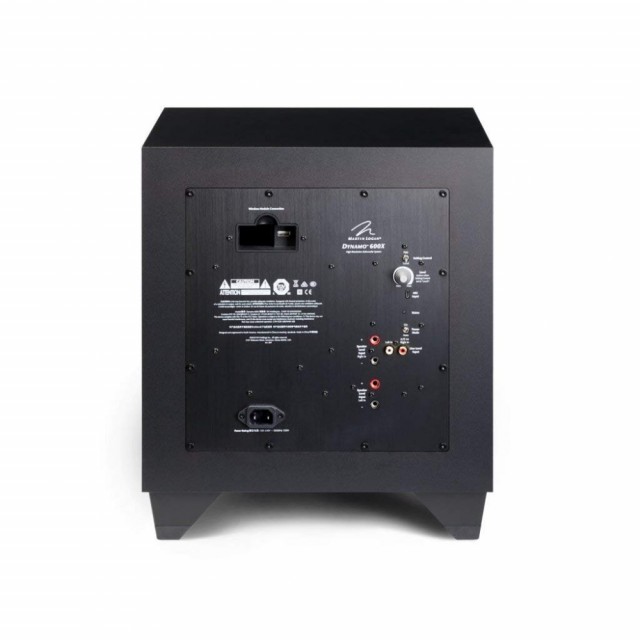

Controls (Backplate)
|
Level: Min–Max Setting Control: Local, App Power Mode: On, Auto
|

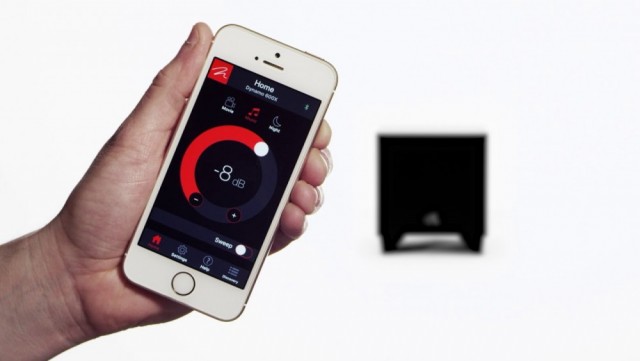

Controls (via Bluetooth)
|
Level: -40 to 12dB Low-Pass Filter (Frequency): 35–120Hz Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0–180° (1° Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Music, Night, Movie 20–30Hz Level: ±10dB Anthem Room Correction (ARCTM): On, Off Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
|
Inputs (Audio)
|
Line Level: Left, Right/LFE Speaker Level: Left and Right via banana jacks
|
Inputs (Audio, Wireless)
|

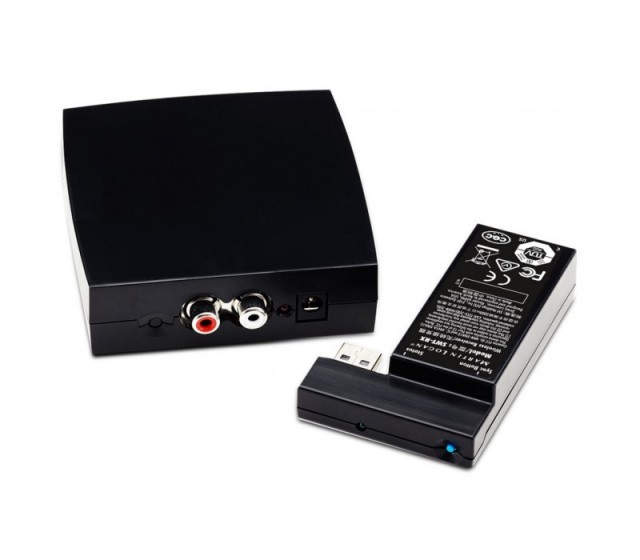

SWT-X Receiver & Transmitter (sold separately)
|
Inputs (Other)
|
USB: Micro USB (for ARC/Firmware Update)
|
Power Draw
|
Typical: 30W, Max: 150W, Idle: 4W, Standby: 0.5W
|
Feet
|
Rubber
|
Weight
|
35.5 lbs. (16.1 kg)
|
Dimensions
|
16.3" x 14.5 " x 14.9 " (41.5 cm x 36.7cm x 37.8 cm)
|
Finish
|
Satin Black
|
